Swiss-Shield® ULTIMA™ | Shielding fabric | Width 250 cm | 1 meter
From Swiss Shield®. Semitransparent cotton fabric as curtain. Similar to NATURELL but tighter with more attenuation. Ecru-white. 42 dB. Width 250 cm.
Content: 2.5 square meter
Weight: 300 g
ID: 182 / 1113
Packaging: 320x230x20 mm

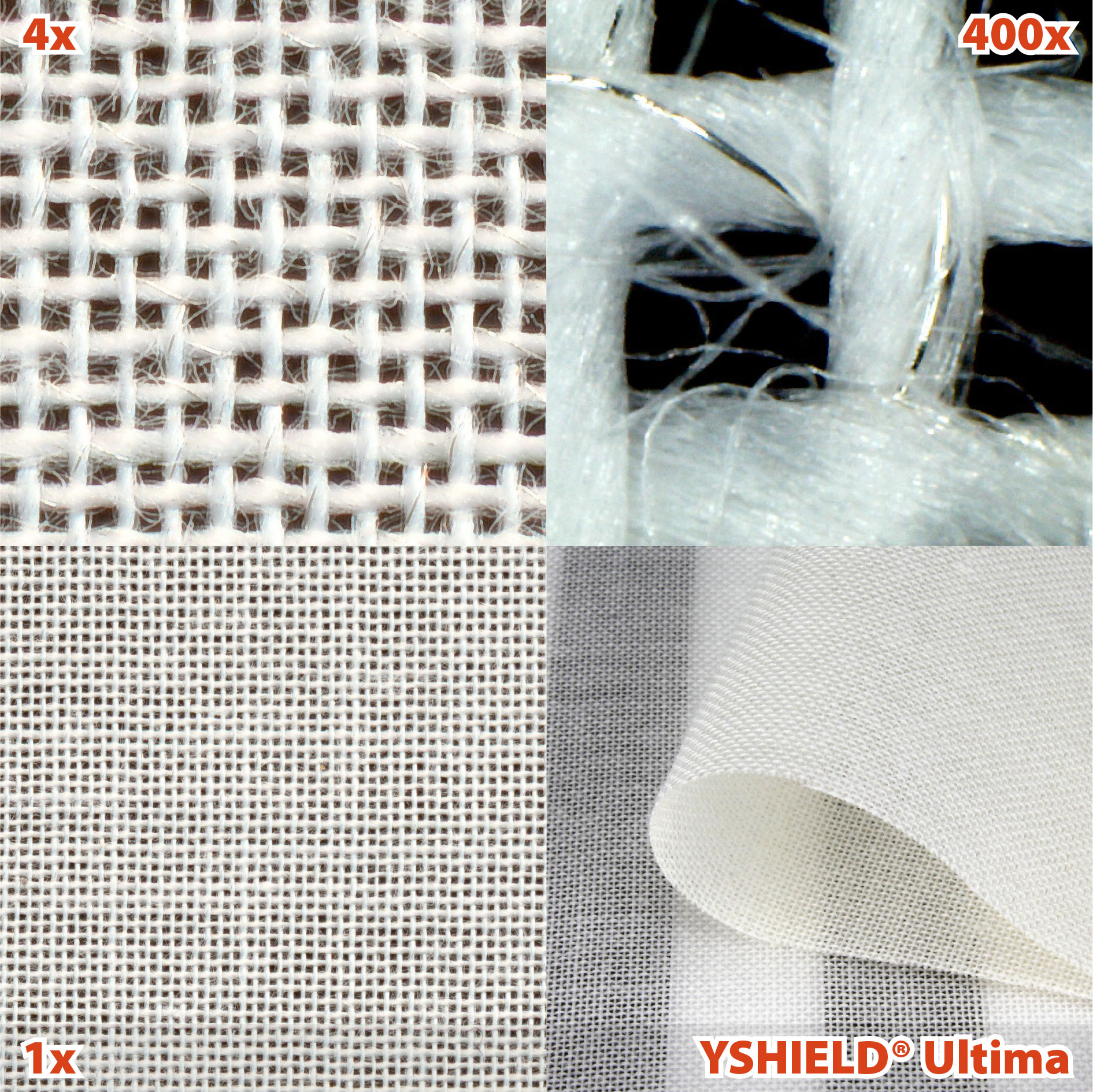

ULTIMA™ from Swiss-Shield® is a finely woven cotton fabric for the shielding of high-frequency electromagnetic fields (HF). Typical application as curtain. Not electrically conductive.
- Cotton fabric without chemicals
- High screening attenuation for a cotton fabric
- Excellent cost/performance ratio
- Textile characteristics: Washable, easy to iron and process
- Quality grade: Very high
OEKO-TEX® STANDARD 100
If a textile article carries the OEKO-TEX® STANDARD 100 label, you can be certain that the article therefore is harmless for human health. In many cases the limit values for the STANDARD 100 go beyond national and international requirements. The criteria catalog is updated at least once a year and expanded with new scientific knowledge or statutory requirements. ZHYO070054 OEKO-TEX® Label Check
Swiss Shield® Shielding fabrics
This fabric is manufactured by Swiss Shield® in Switzerland with a patented, invisible high-tech yarn. At YSHIELD we value the constantly high quality of the fabrics - it's not for nothing that we are the world´s largest Swiss Shield® distributor.
- Width: 250 cm, +/- 2 cm
- Length: Available by the meter
- Attenuation: 42 dB, two-layer 54 dB
- Color: Ecru-White
- Raw materials: 82 % cotton, 17 % copper, 1 % silver
- Weight: 70 g/m²
- Dimension stability: +/- 3 %
- Gentle cycle at 30°C
- Iron without steam at degree 1
- No drying in tumble dryers
- No bleaching
- No chemical dry-cleaning
- Wash only with our special washing detergent TEXCARE, without enzymes or bleaching agents
This product with an electrically isolated surface cannot be contacted or grounded.
Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
This product contains electrically conductive parts on the inside which can neither be contacted nor grounded. That’s why individual areas do not shield low frequency electrical fields (LF). In case this product is used as a Faraday cage (complete shielding on six sides), there will be no low frequency electrical fields (LF) on the inside, which can be proven with a potential free measurement.
Laboratory & expert report of shielding attenuation up to 40 GHz
We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety. Please find the reports above at the downloads.
